CE Germicidal UV Disinfection System for Ultraviolet Surface Sterilization |

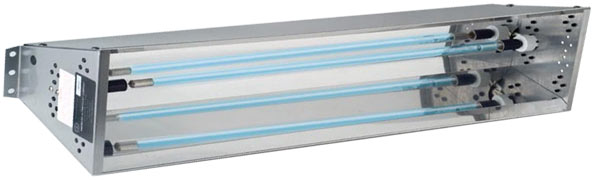

CE UV Disinfection System
In various models with UV lamp configurations of one to four, the CE UV surface sterilizers
direct and confine the ultraviolet light to specific areas. The Closed End reflector UV surface sterilizers
are designed for use over conveyor lines, laboratory benches and ventilation hoods or
with adjustable legs for UV product sterilization. The UV lamp lengths are 4, 6, 8, 12, 18 & 36 inches with germicidal
ultraviolet (UVC) and/or blacklight ultraviolet. Custom UV systems also
available.CE UV Surface Sterilizers Technical Specifications
|
Single UV Lamp Models |
UV Lamp |
UV Watts |
Length |
UV Lamp Life |
CE-36 UV Fixture |
GML005 |
13.8 |
37 |
12,000 hours |
CE-10-SL UV Fixture |
GML060 |
5.3 |
19 |
12,000 hours |
CE-30-H UV Fixture |
GML220 |
8.3 |
37 |
8,000 hours |
CE-25-H UV Fixture |
GML215 |
5.0 |
19 |
8,000 hours |
CE-15-H UV Fixture |
GML210 |
3.6 |
19 |
8,000 hours |
|
|
|
|
|
Double UV Lamp Models |
Two UV Lamps |
UV Watts |
Length |
UV Lamp Life |
CE-36-2 UV Fixture |
GML005 |
13.8 |
37 |
12,000 hours |
CE-10-2SL UV Fixture |
GML060 |
5.3 |
19 |
12,000 hours |
CE-30-2H UV Fixture |
GML220 |
8.3 |
37 |
8,000 hours |
CE-25-2H UV Fixture |
GML215 |
5.0 |
19 |
8,000 hours |
CE-15-2H UV Fixture |
GML210 |
3.6 |
19 |
8,000 hours |
Note: For the 3 and 4 UV lamp models the UV wattage increases by the number of
lamps of the UV surface sterilizer. For example the single UV lamp
CE-36 model outputs 13.8W. The 4 lamp would be 13.8 x 4 = 55.2W of
germicidal UVC energy. |
|
Print the Closed End Reflector UV fixtures specs /PDF/
|
WARNING: Care should be taken to ensure that people are not exposed
to direct or reflected UV light. Suitable eye and skin protection
should be employed when light is in operation. Before lamp cleaning
or relamping always turn the power OFF. |
|
Contact American Air & Water for CE UV surface sterilizers prices
|
