The TTG UV systems are designed to sterilize tank headspace as well as deliver germicidal UV energy to the liquid in the tank. The lamp is housed in a quartz sleeve for protection, as the lamp is partially submerged, suspended in the tank by a double-grooved gasket. The stainless steel electrical enclosure (which also holds the lamp in place) fits on top of the tank and features a Tube Guard to indicate that the lamp is operating properly. These fixtures are offered in 18", 28", 36" and 64" insertion depths to fit a variety of liquid holding tank sizes.
When used with in-line UV liquid disinfection, the product will be 99% free of microorganisms.
Stainless steel Immersion UV unit with quartz sleeve and tube guard models:
TTG-10-4P - One lamp 18" system with Slimline GML350 UV lamp
TTG-24-4P - One lamp 27" system with Slimline GML355 UV lamp
TTG-36-4P - One lamp 36" system with Slimline GML100 UV lamp
TTG-64-4P - One lamp 64" system with Slimline GML270 UV lamp
Stainless steel Immersion UV System with quartz sleeve and tube guard (13¾" L x 3" W + insertion depth)
All models are for 120V or 277V 60Hz with an On/Off Switch and 8' grounded power cord
| UV System Models | Description and Dimensions |
|---|---|
| TTG-10-4P | One lamp 18" unit with Slimline GML350 UV lamp |
| TTG-24-4P | One lamp 27" unit with Slimline GML355 UV lamp |
| TTG-36-4P | One lamp 36" unit with Slimline GML100 UV lamp |
| TTG-64-4P | One lamp 64" unit with Slimline GML270 UV lamp |

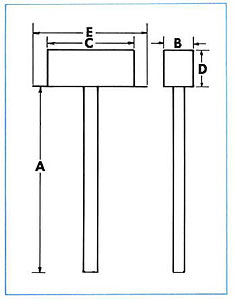

A - Quartz Sleeve Depth
B - Ballast Housing Width
C - Ballast Housing Length
D - Ballast Housing Height
E - Overall Length including Mounting Tabs
All models TTG UV systems have four 9/32" mounting holes
on 14.5" x 1.5" centers.
Quartz Sleeves: 38mm OD, 2mm Wall, 44mm Flare OD with 2mm Flare Lip
Germicidal ultraviolet systems for liquid storage tanks (liquid sugar / syrup and water). Sterile conditioners, vents, blowers using two germicidal UV lamps, 10 micron filters and HEPA filters. All conditioner systems constructed of high grade 304 stainless steel.
