LTC - Liquid Tank Conditioners

UV Liquid Tank Conditioning Units - Description & Technical Specifications

Designed to filter and disinfect air in the headspace of liquid storage tanks, the Liquid Tank Conditioning UV / filtration systems are well suited for water, liquid sugar and syrup storage applications where warm, moist conditions encourage bacteria, yeast and mold growth. Through UV disinfection and filtration these UV systems create positive pressure in the tank headspace with air 99% free of dust and microorganisms - bacteria, yeast, mold and mold spores. The LTC UV systems are mounted outside the tank, so there is no concern about broken lamps or electrical components being introduced into the stored product. Additionally the UV lamps are shatter-proof coated to further diminish the risk of broken lamps. An extensive array of options and customized solutions allows us to provide equipment that fits each customer's unique application, as well as stringent UV disinfection and filtration requirements. If our standard UV liquid tank conditioners and the available options do not fulfill your needs, we can build a unit to any specifications.

Upgraded

See The New And Improved Model

Liquid Tank Conditioners

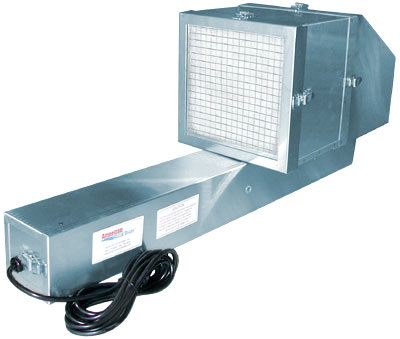

Liquid Tank Conditioners are constructed of high grade 304 stainless steel to mount on top of liquid storage tanks (as shown) and provide unsurpassed filtration and UV disinfection. Using two 10-micron filters, one 0.3-micron Absolute HEPA filter, a 140CFM blower motor and two UVC germicidal lamps, these conditioners will filter and sterilize air in the tank headspace. The blower continuously supplies clean, disinfected air into the tank and maintains positive pressure at all times. The LTC units can handle drop-out rates of up to 200GPM and must be mounted on top of the tank.

LTC-2AB Series Standard Features

A Liquid Tank Vent LTX filtartion system should be installed on the tank exhaust to prevent contaminated air from entering if rapid product drop-out creates reverse suction through the exhaust. The AB Series LTX Vent system consists of two 10-micron (FLT025) pre-filters and one 0.3 micron Absolute HEPA (FLT035) filter housed in a high grade 304 stainless steel enclosure.

LTC-2P Series

Designed for applications that don't require the high efficiency filtration of the LTC-2AB Series, LTC-2P conditioners and vents do not include the 0.3-micron Absolute HEPA filter and have only one 10-micron filter.

LTC-2PF1A0-P0Z & LTC-2PF3A0-P0Z - single 10-micron filter, 140CFM blower, two GML005T UV lamps
LTX10P SSF - Vent - single 10-micron filter (FLT025)

Custom Liquid Tank Conditioners

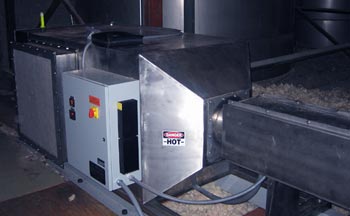

Custom designs for specific requirements available as well as customized liquid tank conditioner units. The picture shows a large SC UV tank conditioner with heat control. Larger picture shown on the SC4AB page.

Ultraviolet Sterile Conditioners Technical Data
viewable on large screens only

Germicidal ultraviolet systems for liquid storage tanks (liquid sugar / syrup and water). Sterile conditioners, vents, blowers using two germicidal UV lamps, 10 micron filters and HEPA filters. All conditioner systems constructed of high grade 304 stainless steel.

Note: The LTC units were redesigned. Go to  LTC UV Systems for the new models.

Double UV lamp sterile conditioner 38" L x 20" H x 12" W for up to 200GPM drop-out rates

Tank Conditioners
Models
Tank Conditioners Description and Dimensions
LTC-2PF1A0-P0Z 3" female threaded PVC Coupling, single 10-micron filter (FLT025), 140CFM blower, 120V 60Hz
LTC-2PF3A0-P0Z 3" Tri Clamp Ferrule, single 10-micron filter (FLT025), 140CFM blower, 120V 60Hz
LTC-2AB1A0-P0Z 3" Female threaded PVC Coupling, two 10-micron filters (FLT025), 0.3-micron HEPA filter (FLT035), 140CFM blower, 120V 60Hz
LTC-2AB3A0-P0Z 3" Tri Clamp Ferrule, two 10-micron filters (FLT025), 0.3-micron HEPA filter (FLT035), 140CFM blower, 120V 60Hz
LTC-2AB3AH-P2Y 3" Tri Clamp Ferrule, two 10-micron filters (FLT025), 0.3-micron HEPA filter (FLT035), 140CFM blower, 220V 50Hz, Heater
LTC-2AB3AH-P0Z 3" Tri Clamp Ferrule, two 10-micron filters (FLT025), 0.3-micron HEPA filter (FLT035), 140CFM blower, 120V 60Hz, Heater

Optional components

EL/HV TG Current sensing relay with lamp on/off indicator
AF-100 Air flow indicator - indicates clogged filters or blower motor failure

Tank vent - high grade stainless steel construction, 10" filters (one required with items shown above)

LTX10P SSF
Vent - electrostatic filter FLT025
LTX10AB SSF
Vent - HEPA absolute filter FLT035 and two electrostatic filters FLT025

Tank blower - high grade stainless steel construction, 10" filters

LTB10P SSF
Blower - 60 CFM blower; electrostatic filter FLT025
LTB10AB SSF
Blower - 100 CFM blower; HEPA FLT035 & two electrostatic filters FLT025
Replacement Parts Shatter-proof UV lamps GML005T, 10" filters: HEPA FLT035, 10-micron FLT025

Go to LTC UV Systems for the new models.
