Packaged Equipment Kit - PEK High Output UV germicidal fixtures are designed specifically for fan coils, Packaged Terminal Air Conditioners (PTAC), classroom unit ventilators, packaged split systems and other similar room unit systems. The PEK UV systems use practical and effective UVC technology to overcome the Indoor Air Quality (IAQ) challenge other small in-room packaging equipment hasn’t been able to solve because they’re often equipped with low-efficiency filters that cannot effectively capture infectious microbiological contaminants or mold. In addition, because of space and airflow limitation, many of these other units cannot be retrofitted with high-efficiency filtration.
Applications: PEK fixtures feature UV lamps that illuminate cooling units with high-output (800mA) UVC energy that eliminates surface contaminants (mold, bacteria or most any microbial biofilm) preserving the energy efficiency of the AC unit and reduce infectious airborne microbial contaminants, bringing improved IAQ to hotel/motel rooms, dormitories, offices, patient rooms, classrooms and other similar rooms.
PEK UV Fixtures utilize high-output “green” UV lamps (≤ 8 mg of mercury; 2-year guarantee) with five-year ballasts (non-prorated 5-year warranty) into a convenient kit that delivers the best and longest-lasting UVC performance available. Independent tests show that the PEK fixtures deliver greater output than any other ultraviolet devices under HVAC operating conditions (45° F at 400 fpm air velocity), and the increased UVC output of our lamps provides the most reliable germicidal performance and longest service life.

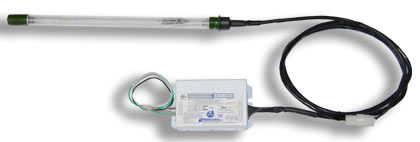

Each PEK UV system contains one “green” UVC Lamp, one 5-year ballast, and all necessary hardware components to retrofit the
room unit with UVC, including wire, holding clips, mounting screws and wire ties - the space-saving, snap-in design fits all major brands. The cell lamps come in lengths of 14, 16, 20, 24, 36, 48 and 60 inches to meet different size requirements. The correct quantity of kits and/or lamp lengths must be selected to irradiate the entire coil.
SPECIFICATIONS: The PEK UV lamp and power supply are factory assembled and tested in the USA prior to shipment. Each kit shall consist of a power supply, lamp cord and high-output lamp.
BALLAST: The solid-state ballast (furnished with this kit) is a Class P rapid start with a power factor minimum of .95. It is available as a 120, 208, 230 or 277 VAC 50/60 Hz, single phase, and is designed to maximize photon production in air temperatures of 35-170° F. Minimum ballast start temperature is – 20 degrees F. Ballasts have a RFI - EMI rating as defined by FCC part 18A for industrial/commercial applications in regards to suppression. Ballast is UL listed for use in HVAC applications.
UV LAMPS: PEK series ultraviolet lamps are high-output (800mA), T5 diameter, and constructed from hard glass tubing for superior UV transmittance. Lamps are “green,” containing ≤ 8mg of mercury and they produce no ozone. Lamps shall retain, at a minimum, 80% of initial output after 2 years (17,000 hours) of use. The UV lamps are sealed for moisture protection with a water-tight connection. Electrodes are designed to maximize plasma convection and stability for superior lamp performance and life. The UV lamps are rated to produce 11.7 µW/cm² per linear inch of lamp arc length at a distance of one meter in a 45° F and 400 fpm airstream.
KIT COMPONENTS: The wire shall be UV-resistant and rated for installation in an HVAC system. The spring mounting clips shall be provided with mounting screws and custom designed to hold the UVC Lamp without damaging the tube during installation or replacement.
INDEPENDENT TESTING: Units are tested by an independent test laboratory in accordance with the general provisions of IES Lighting Handbook, 1981 Applications Volume, and provide output per inch of glass of not less than 11.7 µW/cm² at 1 meter in a 400 fpm airstream of 45° F.
PEK UV Disinfection System Models | UV Lamp | UV Intensity µW/cm² @1m | Amp draw | UV Lamp Length |
---|---|---|---|---|
PEK-18-120 | GCL-18 | 128 | 0.25 | 18” |
PEK-18-230 | GCL-18 | 128 | 0.15 | 18” |
PEK-18-277 | GCL-18 | 128 | 0.10 | 18” |
PEK-24-120 | GCL-24 | 198 | 0.60 | 24" |
PEK-24-230 | GCL-24 | 198 | 0.35 | 24" |
PEK-24-277 | GCL-24 | 198 | 0.30 | 24" |
PEK-36-120 | GCL-36 | 339 | 0.80 | 36" |
PEK-36-230 | GCL-36 | 339 | 0.40 | 36" |
PEK-36-277 | GCL-36 | 339 | 0.35 | 36" |
PEK-48-120 | GCL-48 | 479 | 1.15 | 48" |
PEK-48-230 | GCL-48 | 479 | 0.60 | 48" |
PEK-48-277 | GCL-48 | 479 | 0.50 | 48" |
PEK-60-120 | GCL-60 | 620 | 1.60 | 60” |
PEK-60-230 | GCL-60 | 620 | 0.80 | 60” |
PEK-60-277 | GCL-60 | 620 | 0.70 | 60” |
PEK ballasts dimensions (in inches):
1.00 x 1.72 x 8.60
1.00 x 1.72 x 9.60
1.00 x 1.72 x 19.25
Specify 120, 230 or 277 voltage when ordering.
PEK UV Disinfection System Models | UV Lamp | UV Intensity µW/cm² @1m | Amp draw | UV Lamp Length |
---|---|---|---|---|
GTLK-18-120 | GTL-18 | 128 | 0.25 | 18” |
GTLK-18-230 | GTL-18 | 128 | 0.15 | 18” |
GTLK-18-277 | GTL-18 | 128 | 0.10 | 18” |
GTLK-24-120 | GTL-24 | 198 | 0.60 | 24" |
GTLK-24-230 | GTL-24 | 198 | 0.35 | 24" |
GTLK-24-277 | GTL-24 | 198 | 0.30 | 24" |
GTLK-36-120 | GTL-36 | 339 | 0.80 | 36" |
GTLK-36-230 | GTL-36 | 339 | 0.40 | 36" |
GTLK-36-277 | GTL-36 | 339 | 0.35 | 36" |
GTLK-48-120 | GTL-48 | 479 | 1.15 | 48" |
GTLK-48-230 | GTL-48 | 479 | 0.60 | 48" |
GTLK-48-277 | GTL-48 | 479 | 0.50 | 48" |
GTLK-60-120 | GTL-60 | 620 | 1.60 | 60” |
GTLK-60-230 | GTL-60 | 620 | 0.80 | 60” |
